grouting.

Advantage :

1,No electric, small volume ,light weight ,easy move.

2,durable, easy maintenance

3,manual operation ,high pressure ,grouting speed and flow can be arbitrary

control.

Working instruction :

1 Put the incoming hose into the liquid material .

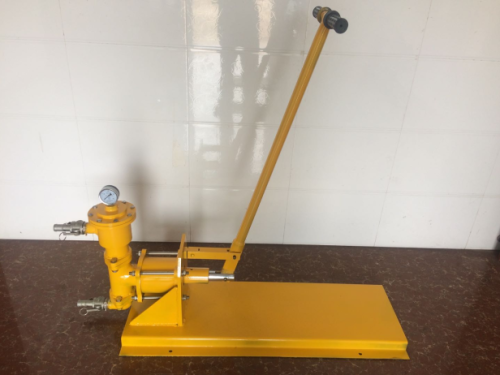

2 The operator stand on the Base of the pump ,then pull the Rocker arm up and

down ,then the material will out from the Outgoing hose.

Machine principles:

Simply say is the piston movement, piston out, this time the ball at inlet opening, outlet

gate ball close. When the piston advancing the material, then close the inlet ball, outlet

ball open. Reciprocation. There is a sealing ring between the slurry and the piston . Piston

with butter mouth needs added butter regularly. No grease lubrication will cause friction

heat , then produce abnormal phenomenon, the performance is the piston can not move.

Precautions:

1, after each job is completed, washing machine and pipes. The specific approach is:

1)put suction tube into the tank, rocker rocking back and forth until the water outflow

discharge slurry pipe; 2) stir with wire midge mouth move the ball, the piston chamber

outflow of water through the grout port; 3) Tilt the machine 90 degrees, so that the water

flows out from the ball on the chamber discharge slurry outlet.

2, injected butter at the injection nozzle regularly.

Technical Parameters:

Work capacity  6-10L/min

Pressure   0-1.0 Mpa

Inlet pipe diameter    25mm

Outlet pipe diameter   25mm

Weight  45kg

Overall size  1250*300*500 mm
